Configuration Files

Configuration files are scriptableObjects that contain data that can be used by different MMV systems. For example, create a configuration file that contains all information about a type of engine, and that engine can be used by many different vehicles.

Creating Any Configuration File

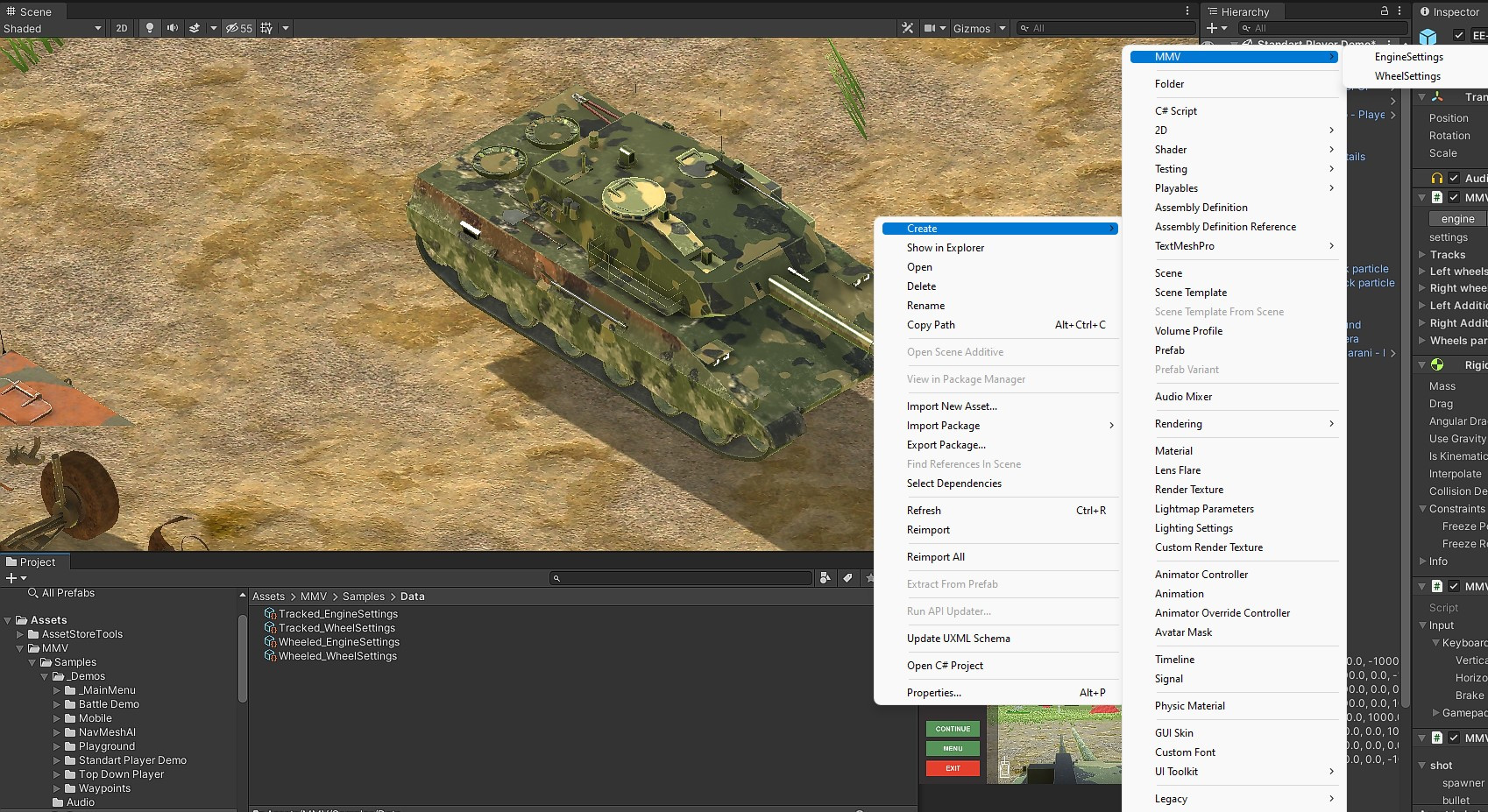

To create a configuration file, go to your “Project” window and right click somewhere:
Create -> MMV -> ….
_images/creating_file.jpg

Engine Settings

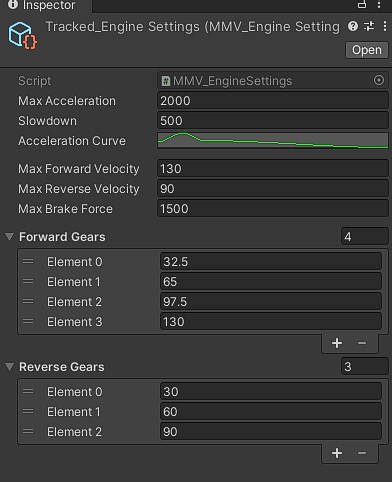

An engine configuration file is responsible for storing all the behavior data of an engine in an MMV vehicle.

_images/engine_settings.jpg

Max acceleration: The maximum acceleration force that the vehicle can achieve

Slowdown: Speed at which the vehicle decelerates

Acceleration curve: Acceleration curve based on current vehicle speed, must never go beyond (0 - 1) horizontally or vertically

Max forward velocity: Maximum speed the vehicle can reach by accelerating forward

Max reverse velocity: Maximum speed the vehicle can reach by accelerating backwards

Max brake force: Vehicle braking force

Gears Forward/Backward: Forward or reverse gear shifting speeds

Wheels Settings

_images/wheels_settings.jpg

Wheel radius: vehicle wheel size

Spring length: Suspension size of each wheel

Spring stiffness: Suspension force

Spring damper: Suspension smoothing

Spring height: Height of start of suspension

Forward friction: front wheel friction

Side friction: side wheel friction
